Introduction

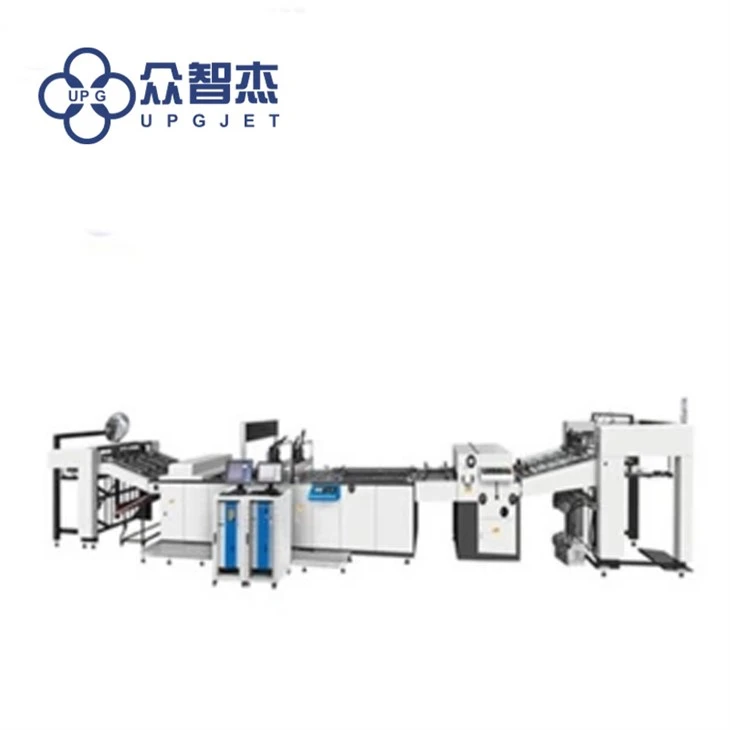

LQ-MD UV1040 digital inkjet printing machine is the latest generation of high-speed inkjet printer, equipped with UV& Water-based piezoelectric head of Japan Ricoh, Konica and other types.
This digital batch coding machine is suitable for digital inkjet printing of UV and water-based inks on a single sheet of paper. It is used in barcodes, two-dimensional codes, invisible codes, etc. Digital supervision and electronic traceability, so as to achieve applications such as refined management and intelligent.
Optional printed matter detection, high work efficiency, more user-friendly operation.
Features& Advantages
1) Feeding unit:
This digital inkjet printing machine adopts the high-speed vacuum suction feeding unit, with double sheet controller and the pre-loader is optional.
2) Correction unit
Without maintenance, the patented deviation correction is easy to adjust with the high precision and good stability.
3) Print unit: Ricoh G5 print-head
Ricoh's most advanced industrial-grade on-demand piezoelectric Ricoh G5 print-head can achieve 7×24 hours of continuous and stable production.
4) Detection system: Line array detection system
while changing jobs, it is not necessary to adjust and meanwhile, the detection speed is fast. And the position offset of the code and the quality of the code can be detected.
5) LED UV curving unit:
Suitable for UV ink and high-speed curing system, with water-cooled circulating cooling and the optional is UV curing.
6) IR drying unit
Suitable for water-based ink and to adopt high-efficient hot air drying and the optional is the IR drying unit suitable for water-based varnish, hot air drying, high energy efficiency
7) Waste eliminating unit:
This digital inkjet printing machine has removal of duplicate codes, missing codes, defective products and substandard products.
8) Fan cooling unit
This digital batch coding machine is unit could cool paper surface after coating.
9) Delivery unit
Automatic down stacker: Pneumatic paper jogging could be optional for post-positioning, which is especially suitable for the production process of medicine packs.
Applications
Two dimensional Code
Bar code
Specification
|
Model |
LQ-MD UV1040 |
|
Max paper size (W×L) |
1040×1040 |
|
Min paper size (W×L) |
400×350 |
|
Max Speed ( M / min) |
100 |
|
Power (KW) |
30 |
|
Paper weight ( g/m³) |
90-500 |
|
Paper height with feeding and delivering paper( mm) |
1200 |
|
Positioning Precision (mm) |
≤±0.2 |
|
IR Drying(KW) |
32 |
|
LED UV drying (KW) |
0.9 /PCS |
|
Machine weight (KG) |
4500 |
|
Overall dimension (mm³) |
13300×1990×1920 |
FAQ
Q:Can you provide OEM service?
A:Yes, it is available
Q:How about the detail information of your product?
A:We can provide main technical parameters, performance, structure of the products etc according to customer requirements.
Q:Can you provide pre-sales training?
A:It is available as long as customers need
Q:Any after-sales service?
A:If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including costs and freight charges etc, during the warranty period, however, if it is damaged caused by our manufacturing failure, we will provide free repair compensation or replacement.
Q:How about installation and training?
A:We could provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
Q:How about the quality guarantee period?
A:The quality guarantee period of the product is 12 months after leaving the Chinese port.
Q:How about payment?
A:Usually T/T and irrevocable L/C at sight to be used at the business and however, some areas need to confirm the L/C by third party's according to the requirement of Chinese bank.
Q:About the price
A:We will give you the best price according to whether you are a dealer or a final user.
Q:How About your delivery time?
A:In general, the delivery time of the ordinary equipment will be 30-60 days after receipt of the deposit. However, for the delivery time of the special or large scale equipment will be 60-90 days after receipt of payment.
Q:Can you provide free samples?
A:We do not provide samples for the complete machine. In order to support our distributors and customers, we will give a preferential price for the first few machines and the samples for the printing consumables, but the freight should be borne by the distributors and customers.
