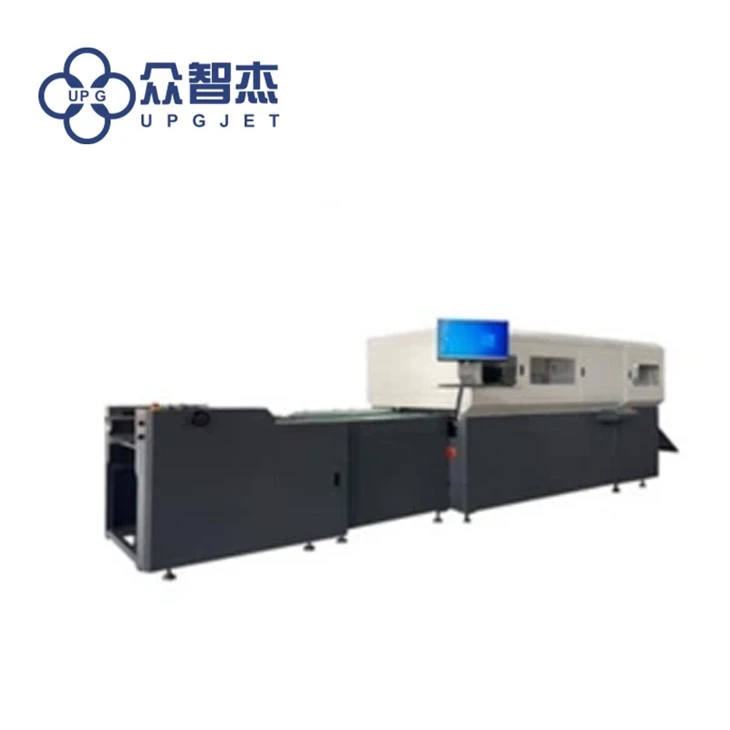

LQ-MD B2/D3 And LQ-MD B2/D8 finishing cold foil with 2D spot UV and 3D embellishment equipment

Specification

We, herewith, detailedly introduce our JET UV/Cold-stamping to integrate into the D series of machine, Whose series are specialized in researching&developing, manufacturing, installing for Customization and delivering according customers' demands.

Without any module or printing plate, Jetouch digital UV/Cold-stamping D series could vividly display 3D UV and digital stamping effects on the surface of printing productions through repeatable printing or stamping.

Features & Advantages

This equipment includes listing configuration:

-Double cameras positioning system

-Inkjet system(3 or 8 nozzles)

-Automatic feeding unit

-Stamping system

-UV LED UV light source

-The delivery unit

-The normal delivery time :8 weeks.

Spot UV coating:

With ink-spraying according to different demands, this machine could do spot UV conveniently after being designed to layout by the computer.

3D touch:

Treatment for once time could realize 10-80μm gradual-change 3D effects to meet different demands for customization.

Digital Stamping:

Without plate, digital cold stamping process could make after-printing graphic vivid and visual, which could save time for plate-making and costs.

Repeatable stamping:

The LQ-MD B2/D3 And LQ-MD B2/D8 finishing cold foil with 2D spot UV and 3D embellishment equipment could achieve "double-side stamping", "different color to stamp " and "Stamping+UV' and etc.(digital finishing enhancement)

This digital UV/Cold-stamping D series Configuration Listing

Description	The details
Automatic Feeding Unit	Digital-control intermittent feeding head Vacuum feeding PLC centralized control
Inkjet Control Unit	B2 model has 3 or 8 Konica 1024i printheads
	Ink-road negative pressure control, temperature control and ink supplement system
	The computer software for setting, control and circuit board communication with graphical interface
	Pneumatic control system for Air output, ink-pressing, ink pressure
	Ink-spray components, drive electronic devices and other integrated mechanisms
	Ink-spray platform protection cover
UV-LED Pre-curving unit	Pre-curving LED light resource electronic control system
Cold stamping unit	The rewinding and unwinding device for stamping foil
	Cold stamping LED light resource , electronic control system with LED function adjustment button
	Stamping device protection cover
Platform transferring unit	Servo control and side-lay transferring platform
Delivery unit	Delivery board device
Positioning System	Double cameras positioning system

Application

Name-card, customization packing; book cover, gift-card, magazine, invitation letter; poster, journal ; label, catalogue, ceramic; metal products and calendar.(LQ-MD B2/D3 And LQ-MD B2/D8 finishing cold foil with 2D spot UV and 3D embellishment equipment)

Specification:

Description	The Digital UV/Cold stamping machine D series
Model	B2-D3	B2-D8
Ink jetting technology	Fit for UV electrostatic pressure spraying head
Category	Spot UV embossment; Touching, 3D stamping and frosting
Resolution ratio	1080DPI,720DPI,360DPI
Supported file format	PRT TIFF PDF
Ink-jetting printing thickness	10-100μm
The max sheet size	530 X 760mm		580 X 760mm
The min sheet size	297 X 210mm
The max UV width	530mm		570mm
The Max working speed	A4 :297X210mm 20 sheet/min
	A3+ 320X464mm 10 sheet/min		A3+ 320X464mm 15 sheet/min
	B2 530X760mm 6 sheet/min		B2 530X760mm 12 sheet/min
Registration Registering precision	CCD double camera positioning ±0.2mm CCD double camera positioning ±0.2mm
The max length for stamping foil	500m
The max height for paper pile	600mm
Total power	12KW 380V 50HZ
Machine weight	1200kg
Dimension	6700X1600X1850mm
