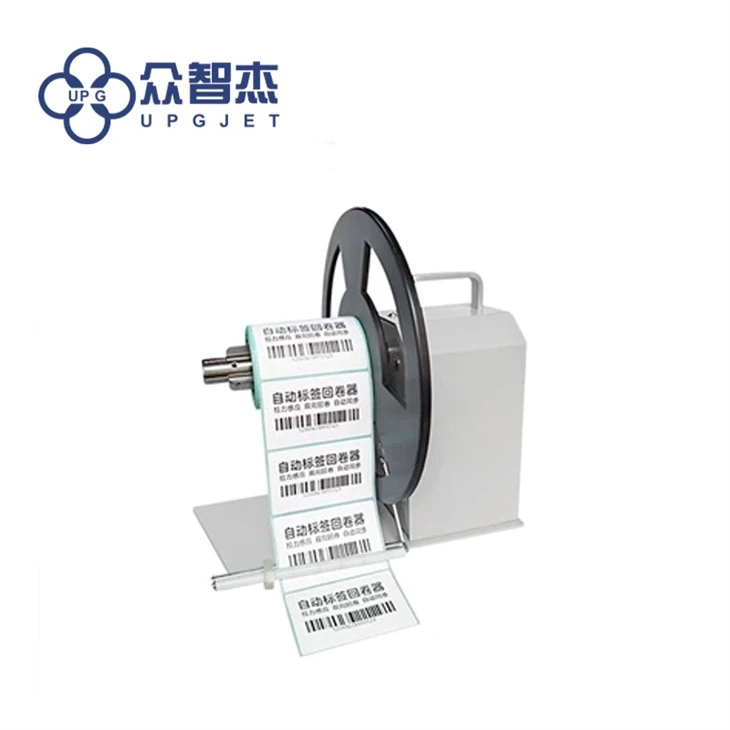

LQ-MD Q Series Commercial Label Rewinder

LQ-MD Q Series Commercial Label Rewinder

Details
-LQ-MD Q Series Commercial Label Rewinder
Two-Way Rewind
Auto-Sync Rewinde
Speed Regulation Rewind
Category
Digital Label Rewinder
Share to
Send Inquiry
Description
Technical Parameters

LQ-MD Q Series Commercial Label Rewinder



Model LQ MD-Q5 LQ MD-Q6
Rewind Speed 1-10 inch/s 1-10 inch/s
Max. label Width 90mm 120mm
Label Roll Diameter Max.O.D.230mm(LQ-MD Q Series Commercial Label Rewinder)
Core Diameter 1"(24-26mm)/ 1.5"(38-40mm)/ 3"(76-78mm)
Rewinding Type Two-way Rewind, Auto-Sync Rewind, Speed Regulation Rewind
Speed tuner stepless speed regulation
Induction Method Rod Induction
Power Input:100-240V 50/60Hz DC Output:24V
Dimension (L) 230mm*(W) 230mm*(H) 265mm (L) 260mm*(W) 230mm*(H) 265mm
Carton size (L) 290mm*(W) 260mm*(H) 330mm (L) 300mm*(W) 295mm*(H) 330mm
Net weight 3KG 3.2KG
Gross weight 3.8KG 4KG
Environment Temperature: 0-45°C Relative humidity: 25%-85%
Certification CE,FCC,RoHs,MA,CNAS
Label rewinding type Paper/cloth/film: copperplate paper adhesive, synthetic paper, thermal paper, washing cloth/shipping mark, card/hanging tag, PET/PVC/PP, Bar code label, supervision code label, security label, all kinds of flexible film packaging material



Our Service

Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.



In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.



After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.



Other Service
We can design special products according to customer requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.





Model LQ MD-Q5 LQ MD-Q6
Rewind Speed 1-10 inch/s 1-10 inch/s
Max. label Width 90mm 120mm
Label Roll Diameter Max.O.D.230mm
Core Diameter 1"(24-26mm)/ 1.5"(38-40mm)/ 3"(76-78mm)
Rewinding Type Two-way Rewind, Auto-Sync Rewind, Speed Regulation Rewind
Speed tuner stepless speed regulation
Induction Method Rod Induction
Power Input:100-240V 50/60Hz DC Output:24V
Dimension (L) 230mm*(W) 230mm*(H) 265mm (L) 260mm*(W) 230mm*(H) 265mm
Carton size (L) 290mm*(W) 260mm*(H) 330mm (L) 300mm*(W) 295mm*(H) 330mm
Net weight 3KG 3.2KG
Gross weight 3.8KG 4KG
Environment Temperature: 0-45°C Relative humidity: 25%-85%
Certification CE,FCC,RoHs,MA,CNAS
Label rewinding type Paper/cloth/film: copperplate paper adhesive, synthetic paper, thermal paper, washing cloth/shipping mark, card/hanging tag, PET/PVC/PP, Bar code label, supervision code label, security label, all kinds of flexible film packaging material
