Introduction

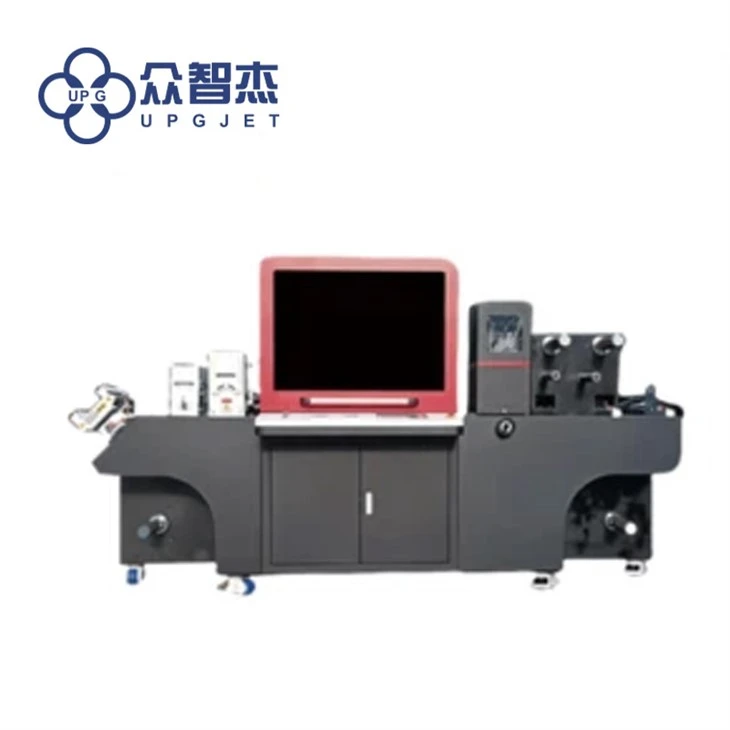

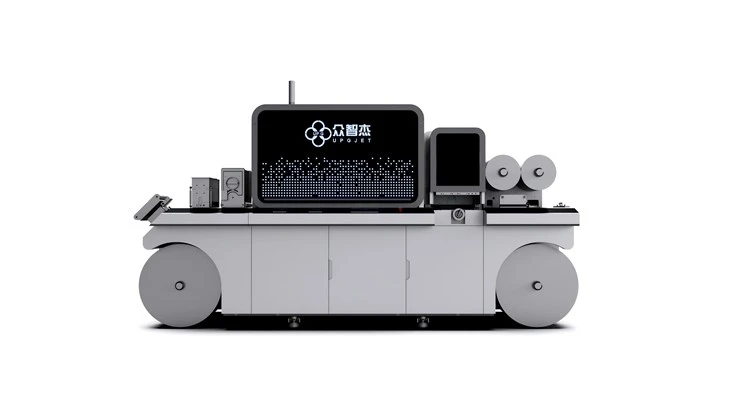

This commercial digital label printer is a hybrid press of digital printing and analog printing technology.
The whole printing system has high cost performance and can be a perfect solution for the PSP who want to enlarge their scale or shift their business from analog to digital printing.
It will help you building a complete line of digital printing. It will bring order and profit increasing significantly to meet the growing demand of personalization and customization, which will lead ahead of the competitors in the market.
· Support 1000m continuous printing
· Banner printing ability:
Besides shop decoration or floor POP display printings, this press can print long poster, banner etc.
· Producing mixed media (with label) ability, which helps enlarging business scopes.
· Can provide different solutions of printing finishing:
Can choose different finish process: lamination, coating, cold foil, die cutting, slitting etc.
· Can do inline or offline printing jobs.
Application:
Specification:
|
Model |
108 |
216 |
330 |
||
|
Print Technology |
DOD piezoelectric inkjet Kyocera Head |
||||
|
Print Width |
108mm |
216mm |
314mm |
||
|
Ink |
LED-UV curable ink |
||||
|
Print Resolution |
600x600dpi/600x900dpi/600x1200dpi |
||||
|
Number of Print Heads(scalable) |
4(expandable) |
8(expandable) |
12(expandable) |
||
|
Print Speed |
Up to 50m/min(164ft/min) |
||||
|
Color |
CMYK (expandable to W or WW and V) |
||||
|
Ink Tank volume |
3L |
||||
|
Software and User Interface |
Lable Print control software Print Factory Rip software |
||||
|
Core Diameter |
76.2mm(3") |
||||
|
Roll-fed width |
Max.230mm |
Max.250mm |
Max.380mm |
||
|
Roll Diameter |
Max.ф500mm |
Max.ф600mm |
Max.ф700mm |
||
|
Pre-Curing |
Air cooling LED |
||||
|
Final Curing |
Water cooling LED |
||||
|
Media width |
Max.230mm |
Max.250mm |
Max.350mm |
||
|
Media Type |
Coated and uncoated paper,PP,PVC,BOPP,etc. |
||||
|
Material Thickness |
0.08-0.5mm(0.003-0.02") |
||||
|
Working Environment |
Temperature: 15-30 ℃ (59-86F) Relative Humidity：40-60%(Recommended) |
||||
|
Power Supply |
Single-phase 220V 30A |
Three-phase 380V 40A |
Three-phase 380V 50A |
||
|
Air supply |
6-8bar,Clean and dry |
||||
|
Main Dimensions |
2000X1300X1850mm |
3360X1600X2200mm |
3500x 1750 x 1850mm |
||
|
Machine Weight |
1430kg |
2400kg |
2700kg |
||
