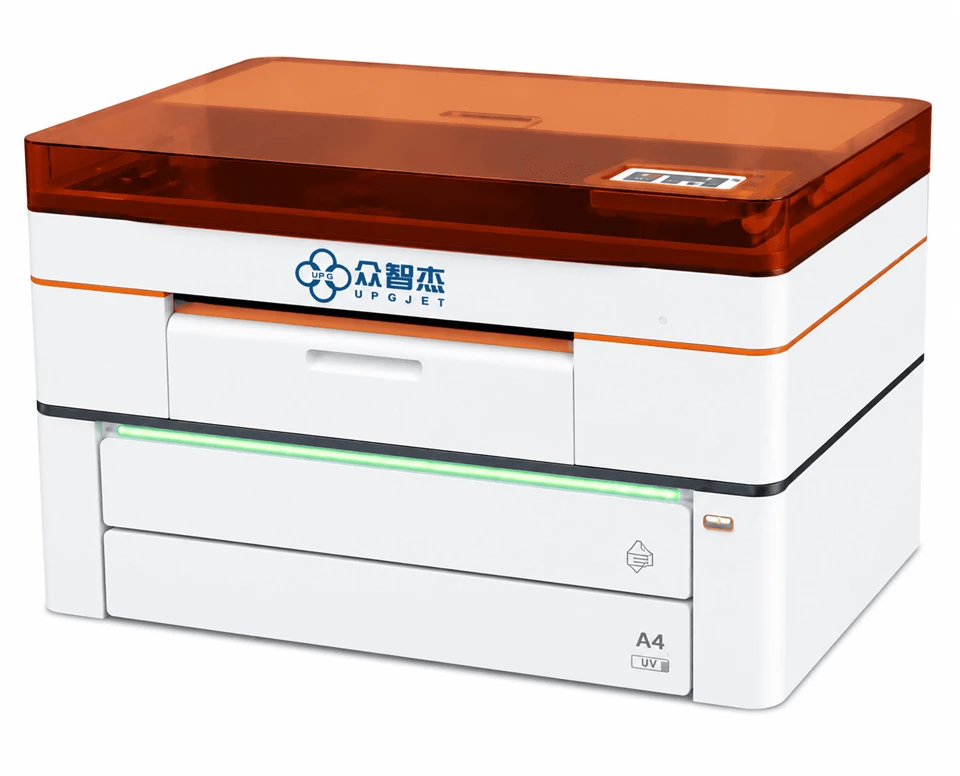

UDMP-Desk DTF A1 Printer

Model

UDMP-Desk A1

Media Width

300mm (11.5")

Print Width

288mm (11.3")

Print Head

Epson F1080

Print Head Configuration

1 Print Head

Nozzle Count

1,080 Nozzles

Minimum Droplet Size

4.5pl

Ink Colors

CY, MG, YE, BK, WH

Ink Capacity

300ml

Control Panel

4.3-inch Color Touch Screen

Power Supply

AC100–240V, 50/60Hz

Power Consumption

Operating: 135W; Standby: 60W; Sleep: 20W

Operating Temperature

Standby: 10°C–40°C; Operating: 15°C–35°C

Operating Humidity

Standby: 5%–85% RH; Operating: 20%–80% RH

Printer Dimensions (L × W × H)

642 × 410 × 215mm

Printer Weight

25kg

Package Dimensions (L × W × H)

802 × 547 × 412mm

Gross Weight

30kg

Connectivity

Wi-Fi, Ethernet (LAN), USB Flash Drive

Equipment Type

Heat Press Machine

Voltage

AC100–240V, 50/60Hz

Heating Plate Size

300mm × 400mm

Heating Power

AC110V: 840W;AC220V: 950W

Maximum Heating Temperature

180°C

Heating Method

Electric Heating

Temperature Control

Digital Temperature Control System

Overheat Protection

Dual Sensor Protection

Sleep Mode

Active Sleep: Press and hold the power button to enter sleep mode.
Passive Sleep: Automatically enters sleep mode after 30 minutes of standby.

Filtration System

Dual Filtration System

Operation Mode

Automatic Temperature Control & Intelligent Standby
