Features &Advantages

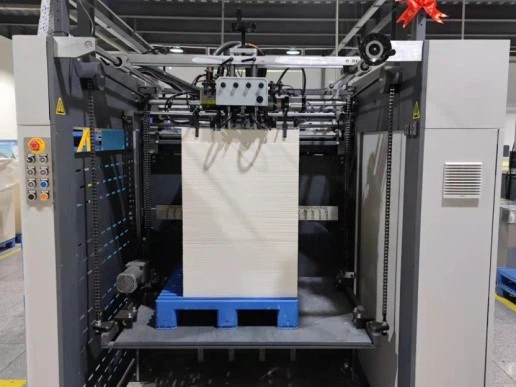

1)Feeding Unit: Shaft-less servo motor drive, intelligent control.
Optional: electric centering adjust system

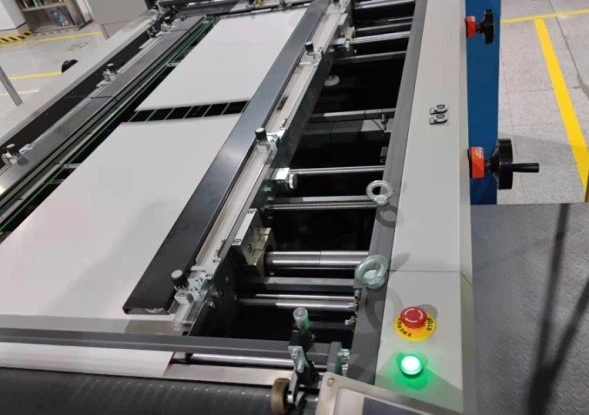

2) Correction Unit:
Patented technology, side gauge accuracy up to ±0.1mm

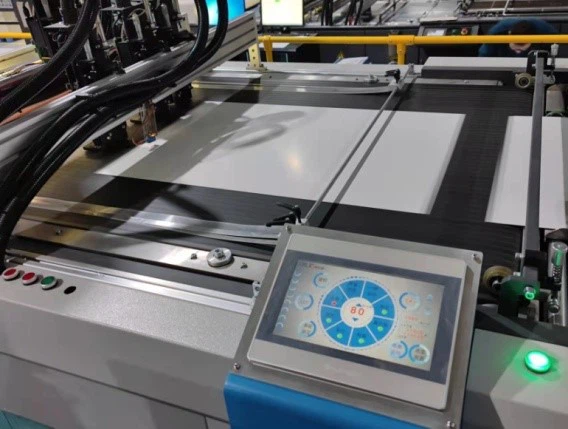

3)Digital ink-jet printing system
Casting wall board structure, with deformation resistance, shock resistance and other characteristics;
Optional：
Servo motor drive and high precision digital professional conveyor belt to ensure the machine precise running.

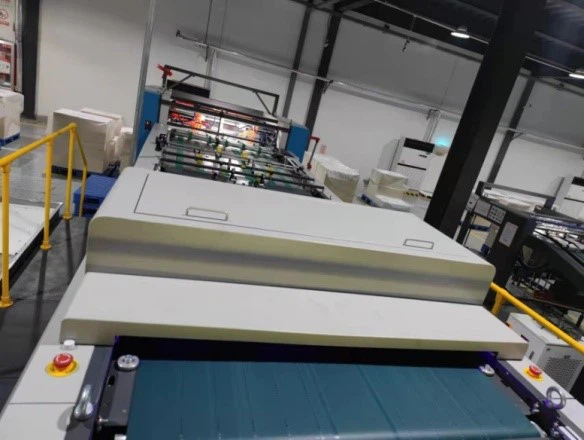

4) UV drying Unit:
LED UV lamp used for UV ink printing;
Optional;
Water-based invisible ink IR drying
B) Automatic movement for LED UV lamp to printing head by reducing adjustment time.
5)Scrap picking section
High speed electromagnetic induction kick waste control.

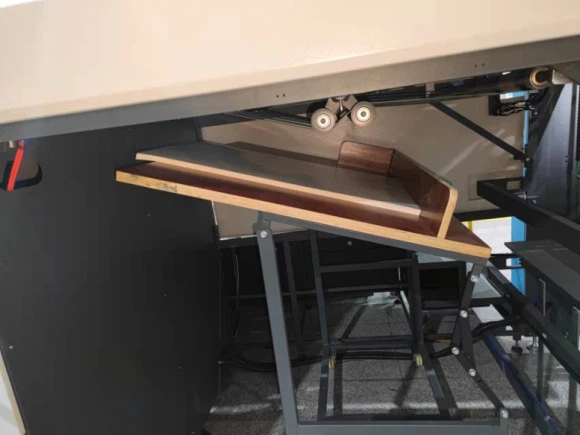

6)Automatic delivery section
Cascading and sheet-fed paper receivers can be switched freely for various paper types;
Optional: side stacking for paper pile.
Applications
Specification
|
Model |
Standard Model: LQ-MD UV1040G |
Heightening Type:LQ-MD UV1040-G-H |
|
Max paper size (W×L) |
1040×1040 |
1040×1040 |
|
Min paper size (W×L) |
350×350 |
350×350 |
|
Max Speed ( M / min) |
150m/min |
150m/min |
|
Power (KW) |
16KW |
23KW |
|
Paper weight ( g/m³) |
90-450 |
90-450 |
|
Paper Height(feeding and delivery) |
1200 |
1500(with tray) |
|
Positioning Precision(mm) |
≤±0.1 |
≤±0.1 |
|
UV drying (KW) |
0.75/PCS |
0.75/PCS |
|
Machine weight (KG) |
7t |
8t |
|
Overall dimension (mm³) |
11200×3500×2000 |
11200×3500×2350 |
*The pile of paper tray could be put into feeding part from standard offset printing machine and no
need to do extra adjust to save labor.
*With single paper delivery and fish-scale delivery to suits for different paper request to avoid starch risk.
