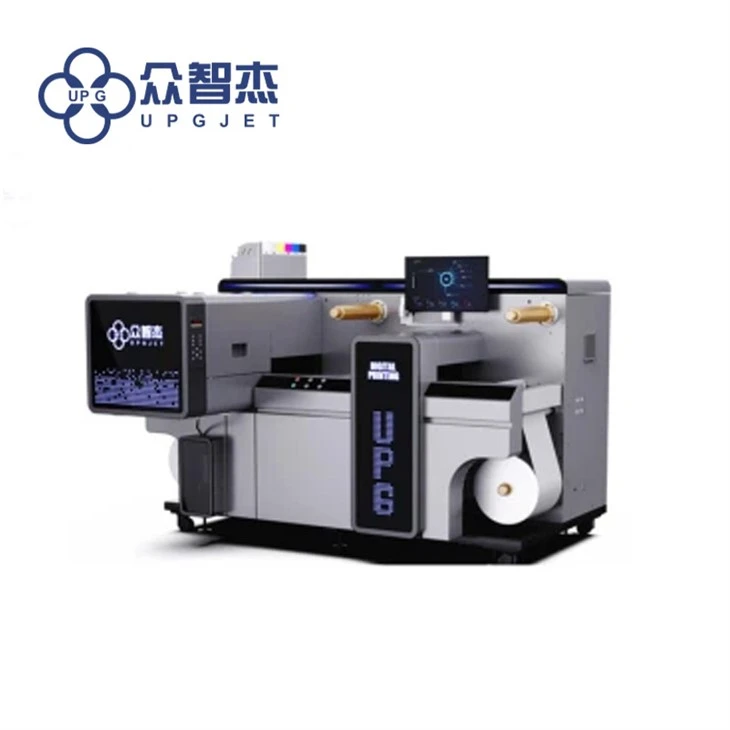

ULAB-MF330RU Printing and Cutting Integrated Machine
Introduction
ULAB-MF330RU Printing and Cutting Integrated Machine is an all-in-one UV scan type printer with in-line cutting machine. It offers high-precision printing via scanning, with high color fidelity and robust industrial grade design. ULAB-MF330RU Printing and Cutting Intergrated Machine can print white, varnish, and colored UV inks on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like printing, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.
Printing unit
Equipped Equipped with 4 EPSON I3200-U1 printheads,it enables high - speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal. It handles both small and large orders with ease.
Buffer
The The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing fil m stretching, deformation, or wrinkle formation.
Cutting unit
The cutting unit uses servo motors controll ed pressure, eliminating manual adjustment, reducing downtime, and boosting production effici ency
Automatically control
Self-devel oped interface enables color, speed, and database integrati on, making the entire process easy to learn and operate.
Features
All-in-one printing and cutting
High resolution, vivid colors
Wide range of applicable materials
High-precision cutting
Specification
|
Model |
ULAB-MF330RU |
|
Maximum Roll Diameter |
320 mm |
|
Maximum Media Width |
330 mm |
|
Printhead |
EPSON i3200-U1×4 |
|
Ink Type |
UV Ink |
|
Ink Colors |
CMYK+W+V, CMYK |
|
Ink Bottle Capacity |
1000 ml |
|
Printing Speed |
0.8-1 m/s |
|
File Formats |
JPG, PDF |
|
Cutting Length |
10-300 mm |
|
Cutting Width |
20-320 mm |
|
Repeat Die-cutting Accuracy |
±0.05 mm |
|
Number of Die-cutting Heads |
2 |
|
Number of Slitting Knives |
Standard 4 (optional according to requirements) |
|
Weight |
1800 Kg |
|
Power |
4KW AC220V 50HZ/60HZ |
|
Dimension |
2200×1800×1700 |
