Introductions

2 in 1, roll and flatbed

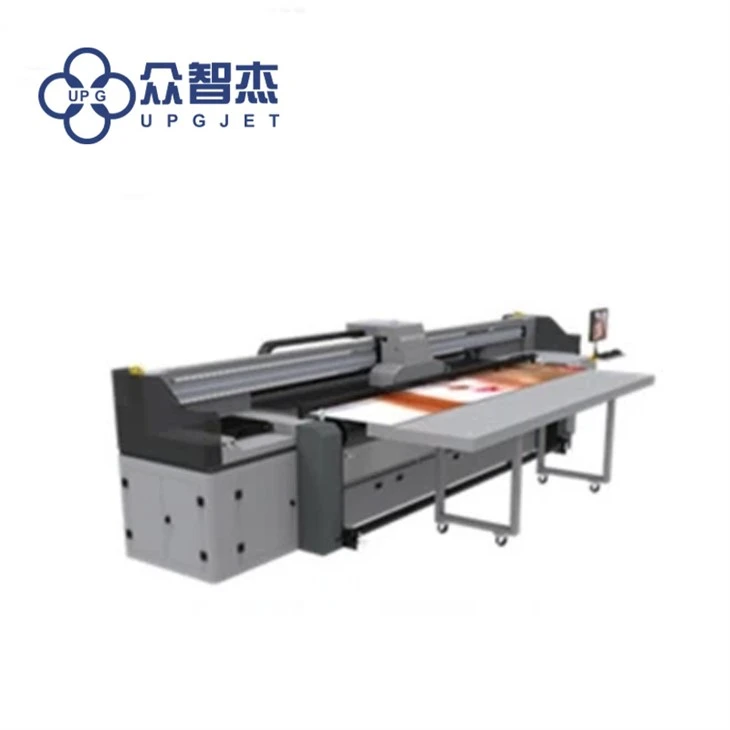

As a hot sell model of UV hybrid product, Power Pro 3200 is able to print both roll media and board media with high quality and high speed. With 3.2m printing width, Power Pro 3200 has meet the printing requirements for most customers to print roll and board media.

Features&Advantages

product-502-248

UV-LED Ink Curing System

LED curing doesn't produce much heat. So heat-sensitive media can be printed and cured without material damage. The curing power is adjustable. Besides, UV-LED curing system also has a longer lifetime. And it is

maintenance free and eco-friendly.

product-449-304

High-resolution encoder

metal encoder with resolution up to 1μ m, ensure printheads moving exactly where it directed. Make sure each ink-dot drop down

the exactly in high speed mode.

product-517-244

Vacuum flatbed with different-zones

Strong vacuum flatbed with functional 4 different zones, holds media flat and firmly in place. Clever-designed

vacuum zones, ensure the strong power work for media of small, medium,and big sizes.

product-280-136

External work tables

With two work tables for machine back and front, it can hold and feed board sheet to print on the machine. The advantage is there is no length limit, it can keep printing for both short and long materials.

product-359-122

Board Locating bar

The locating bar to help the board material locate at the origin quickly.

product-426-275

Auto media height detection

It can measure the height of media and print at a proper height automatically. It can print media with thickness upto 25mm

product-560-248

Dual Statics Elimination System

Statics exists on material, especial in a dry environment. With enhanced dual statics elimination systems, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.

Auto Ink Lock

Ink Sub-tank has equipped with electronic lock to prevent ink drop from off-work break everyday. It also works during short-term

holiday to keep the ink.

product-505-332

Wrinkle-free media feeding system

It has specially designed media extension system including extensive roller and clamping roller for stretchable roll material, which ensures the continuous working less downtime.

Applications:

Specifications

Model	POWER PRO3200
Print Sizes	Max. Print size		3200mm*limitless
	Max. Media size		3220mm*limitless
Media Thickness	Max. 25mm
Substrate weight	Max. 50kgs/m²
Vacuum Flatbed	Pumps	*1 pcs
	Zones	*4 zones
Color channels	Max. 8; CMYK,W, V, LcLm Options
Printhead	Max. No.s	12
	Plate	34Rows; 43Rows
Software	Control	Sprinter UV control system
	RIP	Onyx, Photo print; caldera(optional)
Computer (Not included)	Windows 7/10; 64bits
Data transfer	USB 2.0/3.0
Electricity	220V*3 ways; 50/60Hz;
Machine size & weight	597016001640mm; 597033601640mm (with tables) 2200kgs
Packing	Wooden case*1pc; 20' CTNR
Package Size & G.Weight	578019601850mm; 3280880440mm; 2700kg
