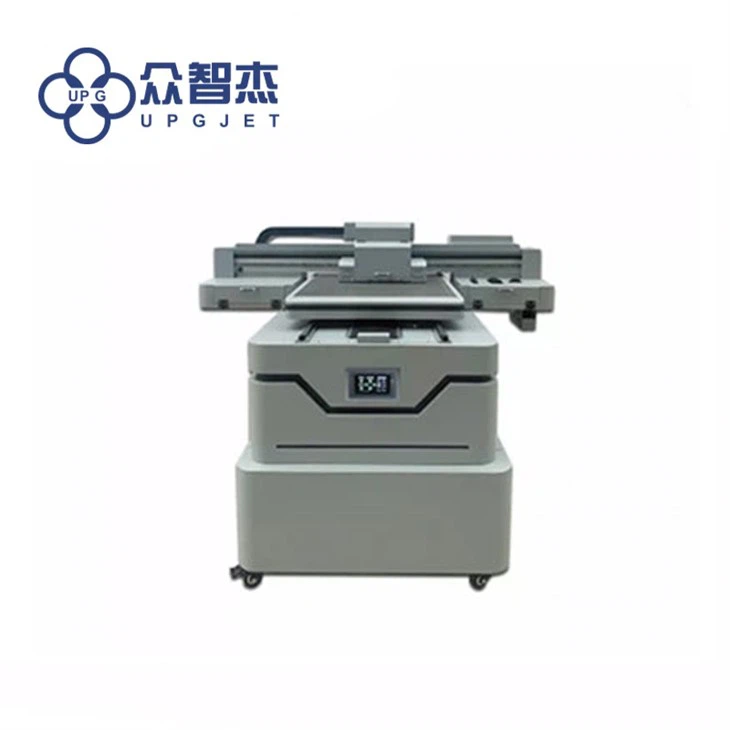

LQ-MD 6090 UV Flatbed Pinter
Features
1. Reliable boards system work on stable, high precision machine body, the 6090 UV flatbed pinter can work on any line.
2. Automatic stirring system for white ink and lacking ink alarming system. Making sure non-stop working. Together with alarm function for ink shortage.
3. White ink channel on or off optional and output percentage adjustable, make printing more vividly and saturation.
4. Carriage height could reach to 24cm; And this 6090 UV flatbed pinter can work on 3 heads by varnish+white+color, Print speed faster, and control easier.
5. Highly integration control software with non-stop working function, easy to read and add print file during printing.
6. Support for multiple printing on same picture by one time, fit for most special produciton request. ( digital uv printer )
Application
Specifications
|
Model |
LQ-MD 6090 |
LQ-MD 6090DH |
|
Printhead |
1080 |
3200 |
|
Print width |
60×90cm |
60×90cm |
|
Heads number |
1 or 2 or 3 |
1 or 2 or 3 |
|
Production mode |
5.5m²/h |
6.5m²/h |
|
Precision mode |
4.5m²/h |
5.5m²/h |
|
High precision |
3.5m²/h |
4.5m²/h |
|
Maximum Resolution |
720×4320 dpi |
|
|
Print height |
3mm to 240mm adjustable |
|
|
Ink |
4/6 color + white + varnish (K, C, M, Y, Lc, Lm + W + V) |
|
|
Printing types |
Glass, Acrylic board, Wood, board, Metal, Leather and so on |
|
|
Data Interface |
USB3.0 high speed interface transfer system |
|
|
Working Environment |
Temperature: 25℃-30℃, Humidity 40%-60% |
|
|
Power |
50 – 60 Hz, 1000W-1600W, AC220V (±10%) / AC110V (±10%) |
|
|
Operating Systems |
Windows 7 Professional, Windows 8, Windows 10 |
|
|
Size |
With table: 1530mm×1600mm×1380mm |
|
FAQ
Q:Can you provide OEM service?
A:Yes, it is available
Q:How about the detail information of your product?
A:We can provide main technical parameters, performance, structure of the products etc according to customer requirements.
Q:Can you provide pre-sales training?
A:It is available as long as customers need
Q:Any after-sales service?
A:If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including costs and freight charges etc, during the warranty period, however, if it is damaged caused by our manufacturing failure, we will provide free repair compensation or replacement.
Q:How about installation and training?
A:We could provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
Q:How about the quality guarantee period?
A:The quality guarantee period of the product is 12 months after leaving the Chinese port.
Q:How about payment?
A:Usually T/T and irrevocable L/C at sight to be used at the business and however, some areas need to confirm the L/C by third party's according to the requirement of Chinese bank.
Q:About the price
A:We will give you the best price according to whether you are a dealer or a final user.
Q:How About your delivery time?
A:In general, the delivery time of the ordinary equipment will be 30-60 days after receipt of the deposit. However, for the delivery time of the special or large scale equipment will be 60-90 days after receipt of payment.
Q:Can you provide free samples?
A:We do not provide samples for the complete machine. In order to support our distributors and customers, we will give a preferential price for the first few machines and the samples for the printing consumables, but the freight should be borne by the distributors and customers.
