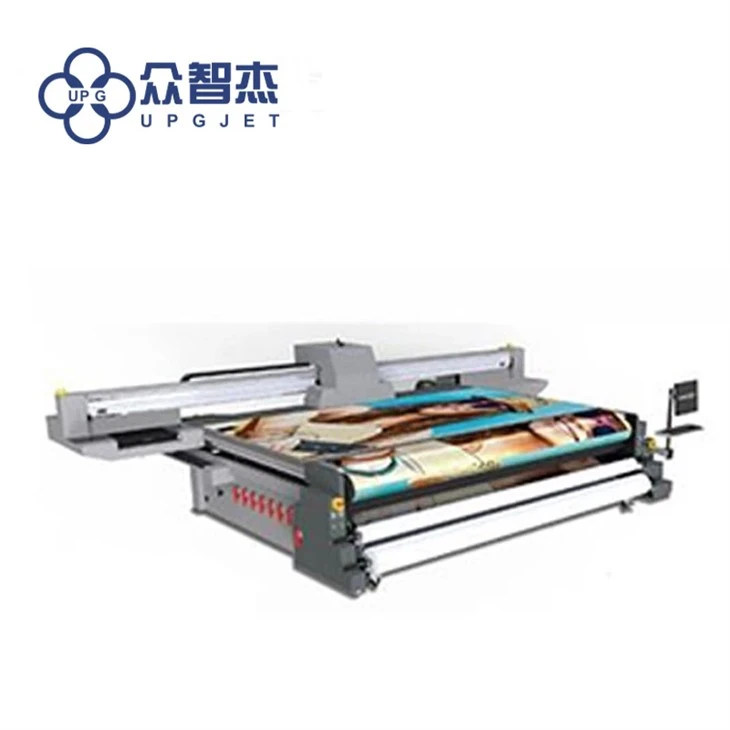

LQ-MD3221 Roll To Roll UV Hybrid Printer
Introduction of Function
● Convex spotlight makes stronger light to cure ink, and efficient water-recycling system ensure it works longer time.
● Adopt metal grating higher accuracy, higher stability, more durable.
● Anti-statics system is upgraded to eliminate statics at higher efficiency and in larger area.
● Made with big rubber rollers, the RTR system can print on 2.5m roll, or two small rolls.
● Automatic heating system can make the ink to be in the best situation at a constant temperature, so obtaining the best print quality.
● The ink valve system is opened and closed automatically bysolenoid vavle control.
Application
Specifications
|
Model |
LQ-MD3221 |
|
|
Printhead |
RICOH GEN5 7PL (3-12H) |
RICOH GEN6 5PL (3-12H) |
|
Resolution |
600, 900, 1200, 1800, 2400 dpi |
|
|
Printng speed |
12 Printheads CMYK × 4 |
12 Printheads CMYK × 4 |
|
Color |
4 color /double 4 color /6color /white or varnish |
|
|
Max. material thickness |
Rigid material: ≤110mm; Flexible media: ≤1mm |
|
|
Drying system |
LED lamp /UVmercury lamp Option |
|
|
Air draft |
8 air draft divisions adapt to the max working area dimension |
|
|
Printing size |
Maximum Printing Area: Rigid material: 3300mm × 1300mm |
|
|
Maximum Material Area: Rigid material: 3450mm × 2150mm |
||
|
Ink |
UV Curing ink |
|
|
Outdoor life |
At least 3 years outdoor / 10 years indoor -- use Sprinter ink |
|
|
Ink capacity |
1.5L drums, automatic surveillance for shorting of ink, non-stop and ink |
|
|
Ink supply system |
Auto Negative ink supply |
|
|
Media |
Glass, PMMA, ceramic, Metal, Paper, wood, Leather, flex banner, Wallpaper, Car sticker, Soft film, PVC, PP, PE, PTEE… |
|
|
Control system |
Windows 7 /10, 64 bit, RAM ≥8G, HDD ≥500G, SSD ≥128G, CPU ≥Inte 15 |
|
|
RIP software |
Photoprint / Print Factory / ONYX / Caldera (Option) |
|
|
Operation environment |
Temperature: 18°C-26°C is more effectively contorl static and guarantee printed quality |
|
|
Humidity: 40% -70%. TO effectively control static and guarantee printed quality |
||
|
Power supply |
Power Maximum: 8 KW; AC, 50 /60 HZ; 220 v (±10%)＞15A |
|
|
Image format |
Tiff, JPEG, EPS, PDF |
|
|
Dimension (L×W×H) |
5500 × 3500 × 1660 mm |
|
|
Package dimensions (L×W×H) |
5650 × 2300 × 1900 mm & 4000 × 1040 × 1100 mm |
|
|
Net weight & Gross weight |
3100 kg & 3700 kg |
|
|
Safety certification |
Certification |
|
FAQ
Q:Can you provide OEM service?
A:Yes, it is available
Q:How about the detail information of your product?
A:We can provide main technical parameters, performance, structure of the products etc according to customer requirements.
Q:Can you provide pre-sales training?
A:It is available as long as customers need
Q:Any after-sales service?
A:If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including costs and freight charges etc, during the warranty period, however, if it is damaged caused by our manufacturing failure, we will provide free repair compensation or replacement.
Q:How about installation and training?
A:We could provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
Q:How about the quality guarantee period?
A:The quality guarantee period of the product is 12 months after leaving the Chinese port.
Q:How about payment?
A:Usually T/T and irrevocable L/C at sight to be used at the business and however, some areas need to confirm the L/C by third party's according to the requirement of Chinese bank.
Q:About the price
A:We will give you the best price according to whether you are a dealer or a final user.
Q:How About your delivery time?
A:In general, the delivery time of the ordinary equipment will be 30-60 days after receipt of the deposit. However, for the delivery time of the special or large scale equipment will be 60-90 days after receipt of payment.
Q:Can you provide free samples?
A:We do not provide samples for the complete machine. In order to support our distributors and customers, we will give a preferential price for the first few machines and the samples for the printing consumables, but the freight should be borne by the distributors and customers.
