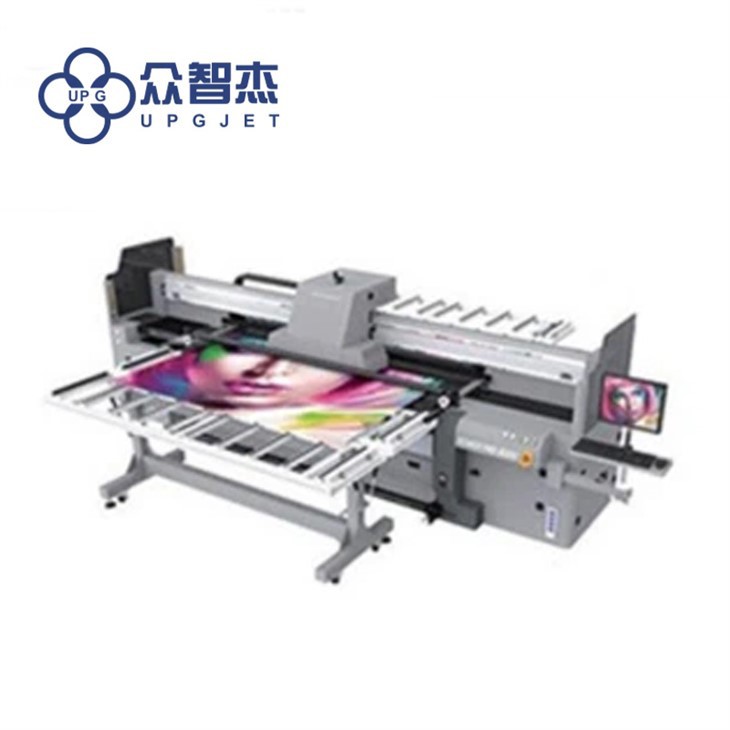

LQ-MD 2000 (Power Pro)UV Belt Convey Hybrid Printer
Introductions:
A hybrid UV printer that can work both for roll and flat materials with external tables. The LQ-MD 2000 (Power Pro) UV belt convey hybrid printer could print on material with width up to 2.2m. It has been widely used in signs & advertising. display, furniture, decorating industries.
Features&Advantages:
-User-friendly control system
-Image ripping system
-Auto media height detection
-Anti-crush system
-Statics eliminating system
-Media suction platform
-Auto ink volume alarm system
-Backlight display during printing
The LQ-MD 2000 (Power Pro) UV belt convey hybrid printer has been widely used in different industries including advertisement and signs, furniture, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foam boards, paper.
This LQ-MD 2000 (Power Pro) UV belt convey hybrid printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.
Applications:
Specification:
|
Type |
UV Hybrid Printer |
||||
|
Model |
Pow2000 |
||||
|
Print size |
2.2m*endless |
||||
|
Printhead |
Ricoh Gen5/6 |
||||
|
Curing sys |
LED |
||||
|
RIP |
Onyx |
||||
|
external tables |
2 pcs |
||||
|
Functions |
media thickness sensor; Board aligment bar; vacuum flatbed; anti-static; Ink alarm system |
||||
|
Colors |
CMYK,W |
CMYK LcLm W |
|||
|
Head QTY |
3 |
4 |
|||
|
Head Plate |
|
|
|||
|
Color |
4 color/ double 4 color/ 6 color/ white or varnish |
||||
|
Max material thickness |
0mm-25mm |
||||
|
Ink Curting system |
LED lamp |
||||
|
Air draft |
2 air draft division adapt to the max working ares dimension) |
||||
|
Media handling |
Roll to Roll |
||||
|
Printing size |
2200mm |
||||
|
Ink |
UV Curing ink |
||||
|
Optional |
external tables |
||||
|
Ink capacity |
1.5L drums, automatic surveillance for shorting of ink ,non-stop and ink |
||||
|
Ink supply system |
Auto Negative ink supply |
||||
|
Media |
Glass,Ceramic,Metal,Paper,Leather,Wallpaper ,Soft film,PVC ,PP,PE..... |
||||
|
Control system |
Windows7/10 64bit .RAM≥8G .HDD≥ 500G SSD≥ 128G .CPU≥Inte15 |
||||
|
RIP software |
Photo print/ Print Factory/ ONYX/Caldera (Option) |
||||
|
Operation environment |
Temperature |
18°C-26°C is more effectively control static and guarantee printed quality |
|||
|
Humidity |
40%~ 70%.TO effectively control static and guarantee printed quality |
||||
|
Power supply |
Power Maximum: 6.5KW; AC,50HZ/60HZ;220v(±10%)>15A |
||||
|
Image format |
TIFF,JPEG,EPS,PDF |
||||
|
Dimension (LxWx H) |
4960x1500x 1600mm/ 4960 x 3670x 1600 mm |
||||
|
Package dimensions (LxWx H) |
4780x 1960x 1850 mm |
||||
|
Net Weight& Gross weight |
1300kg& 1800kg |
||||
|
Safety certification |
Certification |
||||
