Features&Advantages

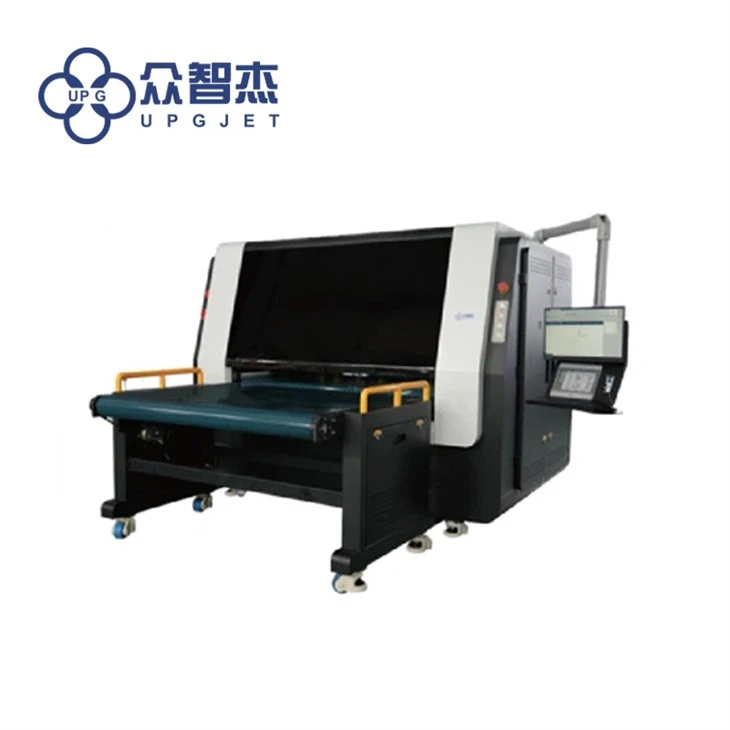

1. LQ-MD 1624A Single Pass Digital Corrugated Printer automatic paper feeding, automatic adjustment of paper positioning, automatic setting of print height, automatic moisturizing, achieve full closed-loop precision control.
2. All moving components can monitor the working status of each component in real time, some faults can be remotely checked and eliminated.
3. LQ-MD 1624A Single Pass Digital Corrugated Printer according to the width of the paper, the negative pressure of the corresponding partition is automatically turned on to increase the vacuum pressure. The leading edge paper feeding is further integrated with the printing system, thereby reducing the footprint of the entire machine by 30%.
4. Years of technology accumulation, based on the experience of dozens of customers on the first-generation platform, incorporates various detailed improvements.
Specification
|
Model |
LQ-MD 1624A |
|
Rip Software Rip |
Maintop |
|
Print Head |
EPSON I1600A1 head/I3200A1 head |
|
Print drive and interfaces |
Net gape |
|
No.s of Print Head |
24 |
|
Ink type and color |
Ink: Dye ink – Colors: CMYK. |
|
Max. Printing Width |
800mm. |
|
Media Thickness |
1~20mm. |
|
Printing resolution & Speed |
300*300/600 DPI,90 m/min;600×300/600 DPI,54 m/min |
|
900×300/600 DPI,30 m/min |
|
|
Media |
Paper width：350mm~1600mm |
|
Paper width：300mm~3500mm |
|
|
Printing paper and vacuum solution |
All belt adsorb paper; The belt is positioned with a guide bar to prevent deviation. |
|
There are three air vacuum zones on the left and right side. Each zone has one air vacuum outlet before and after. The left and right zones can be closed independently |
|
|
Independent 5.5KW vacuum in printing area |
|
|
Feeding Mode |
Single axis servo leading edge feed, independent 5.5KW fan |
|
Automatic adjustment of baffles and splints, paper tail bracket manual front and rear |
|
|
Receiving Method |
Full belt conveyor |
|
Operating System |
Windows10 or above Version. |
