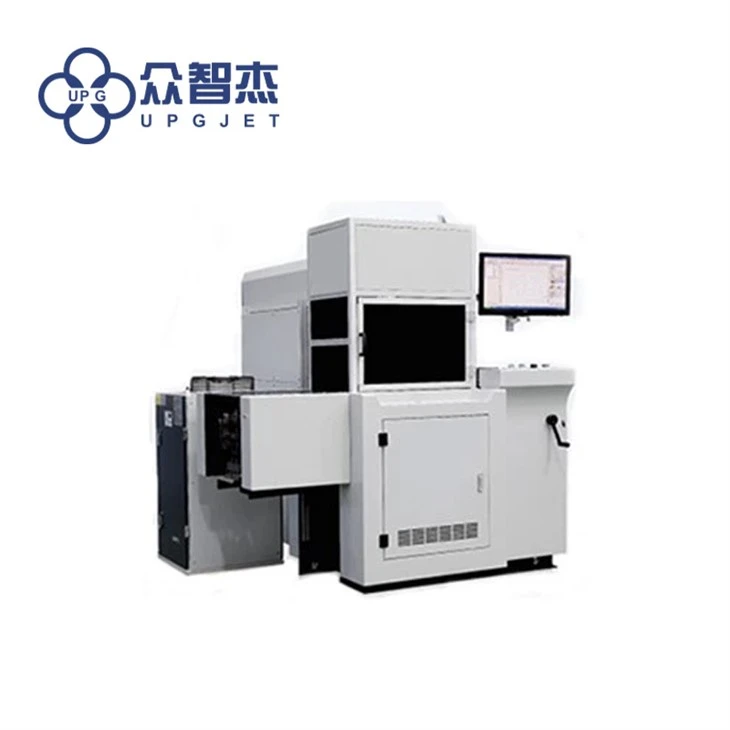

LQ-MD 340S Single Sheet Laser Cutting Machine
Features:
-Digitization: Rapid replacement of different cutting images by computer, not only meets the personalized demands, but suits for short run (digital) printing jobs and post-press processing of large format imposition printing jobs.
-High precision: Automatic laser cutting and engraving guarantee zero vibration. Video capture technology minimizes the sheet feeding clearance, meanwhile ensures cutting precision.(LQ-MD 340S Single Sheet Laser Cutting Machine)
-High efficient: To replace and upgrade traditional mechanical die cutting by laser cutting, save the time for producing and adjusting of traditional cutting dies.
-Affordable cost: Model to cut graphics and characters arbitrarily is controlled by computer, mechanical cutting die is not required, operation and maintenance cost is less.
Specification:
|
Model |
LQ-MD 340S Single Sheet Laser Cutting Machine |
|
Design type |
Sheet-Fed |
|
Max. sheet size |
483mm×340mm |
|
Laser type |
10.6um CO2 |
|
Laser power |
180w |
|
Positioning method |
Video capture |
|
Positioning accuracy |
±0.2mm |
|
File format |
PLT,DXF,JPG,BMP |
|
Power Supply |
AC220V 50Hz 5-8KW |
|
Working environment |
Temperature:25±5℃ Humidity:40%-70% |
|
Weight |
800KG |
|
Machine Dimension(L×W×H) |
2000X2100X1800mm |
FAQ
Q:Can you provide OEM service?
A:Yes, it is available
Q:How about the detail information of your product?
A:We can provide main technical parameters, performance, structure of the products etc according to customer requirements.
Q:Can you provide pre-sales training?
A:It is available as long as customers need
Q:Any after-sales service?
A:If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including costs and freight charges etc, during the warranty period, however, if it is damaged caused by our manufacturing failure, we will provide free repair compensation or replacement.
Q:How about installation and training?
A:We could provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
Q:How about the quality guarantee period?
A:The quality guarantee period of the product is 12 months after leaving the Chinese port.
Q:How about payment?
A:Usually T/T and irrevocable L/C at sight to be used at the business and however, some areas need to confirm the L/C by third party's according to the requirement of Chinese bank.
Q:About the price
A:We will give you the best price according to whether you are a dealer or a final user.
Q:How About your delivery time?
A:In general, the delivery time of the ordinary equipment will be 30-60 days after receipt of the deposit. However, for the delivery time of the special or large scale equipment will be 60-90 days after receipt of payment.
Q:Can you provide free samples?
A:We do not provide samples for the complete machine. In order to support our distributors and customers, we will give a preferential price for the first few machines and the samples for the printing consumables, but the freight should be borne by the distributors and customers.
